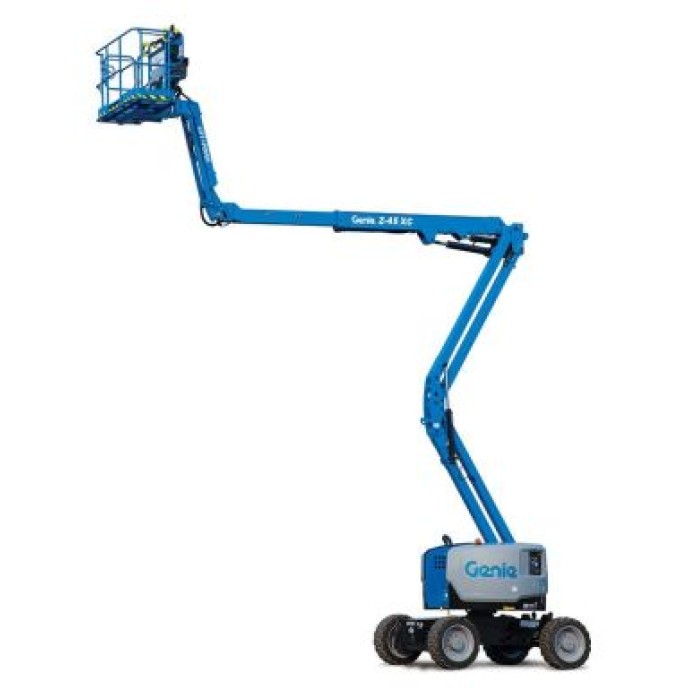

The Genie® Z®-45 XC™ articulating boom is the redesigned Xtra Capacity™ version of the popular rough-terrain Genie Z-45/25 J RT diesel powered articulating boom. It’s the first Genie XC articulating boom model, boasting the benefits of a dual-envelope design to provide an unrestricted platform capacity of 660 lb (300 kg) and a restricted capacity of 1,000 lb (454 kg).
| Specification | Value |
|---|---|
| Max Working Height | 15.86 m |
| Max Horizontal Reach | 7.55 m |
| Max Up and Over Clearance (riser extended) | 7.44 m |
| Platform Capacity | 300 kg Unrestricted, 454 kg Restricted |
The Genie® Z®-30/20 N RJ articulating boom lift offers quiet, emission-free operation in the most sensitive work environments, and includes a rotating jib for 180°of horizontal rotation.
| Specification | Value |
|---|---|
| Max Working Height | 35 ft 2 in |
| Max Horizontal Reach | 20 ft 6 in |
| Max Up and Over Clearance (riser extended) | 12 ft 8 in |
| Platform Capacity | 500 lb |
The Genie® Z®-34/22 N electric articulating boom lift offers quiet, emission-free operation in the most sensitive work environments, as a 48V DC machine.
| Specification | Value |
|---|---|
| Max Working Height | 40 ft 6 in |
| Max Horizontal Reach | 22 ft 3 in |
| Max Up and Over Clearance (riser extended) | 15 ft 3 in |
| Platform Capacity | 500 lb |
The Genie® Z®-40/23 N electric articulating boom lift offers compact dimensions and quiet, emission-free operation in the most sensitive work environments thanks to its eco-friendly AC drive system.
| Specification | Value |
|---|---|
| Max Working Height | 46 ft 5 in |
| Max Horizontal Reach | 22 ft 8 in |
| Max Up and Over Clearance (riser extended) | 21 ft 3 in |
| Platform Capacity | 500 lb |
Narrow, compact and equipped with the latest generation of eco-friendly AC drive systems, the Genie® Z™-40/23 N RJ electric articulating boom lift is a quiet, emission-free, cost-efficient solution ideal for sensitive, congested and urban work environments. It features a rotating jib offering industry-leading horizontal rotation as well as the standard vertical reach for increased jobsite versatility.
| Specification | Value |
|---|---|
| Max Working Height | 46 ft 5 in |
| Max Horizontal Reach | 22 ft 8 in |
| Max Up and Over Clearance (riser extended) | 21 ft 3 in |
| Platform Capacity | 500 lb |
Thanks to its quiet, clean performance and four-wheel drive abilities, this Genie® Z®-45 DC is a versatile, all-electric eco-friendly articulating boom lift, ideal for a number of outdoor and indoor applications on construction sites, sports arenas, malls, facilities, and even challenging pedestrian areas.
| Specification | Value |
|---|---|
| Max Working Height | 51 ft 8 in |
| Max Horizontal Reach | 22 ft 9 in |
| Max Up and Over Clearance (riser extended) | 24 ft 7 in |
| Platform Capacity | 660 lb |
Thanks to its quiet, clean performance and four-wheel drive abilities, this Genie® Z®-60 DC is a versatile, all-electric eco-friendly articulating boom lift, ideal for a number of outdoor and indoor applications on construction sites, sports arenas, malls, facilities, and even challenging pedestrian areas.
| Specification | Value |
|---|---|
| Max Working Height | 65 ft 7 in |
| Max Horizontal Reach | 36 ft 7 in |
| Max Up and Over Clearance (riser extended) | 24 ft 3 in |
| Platform Capacity | 500 lb |

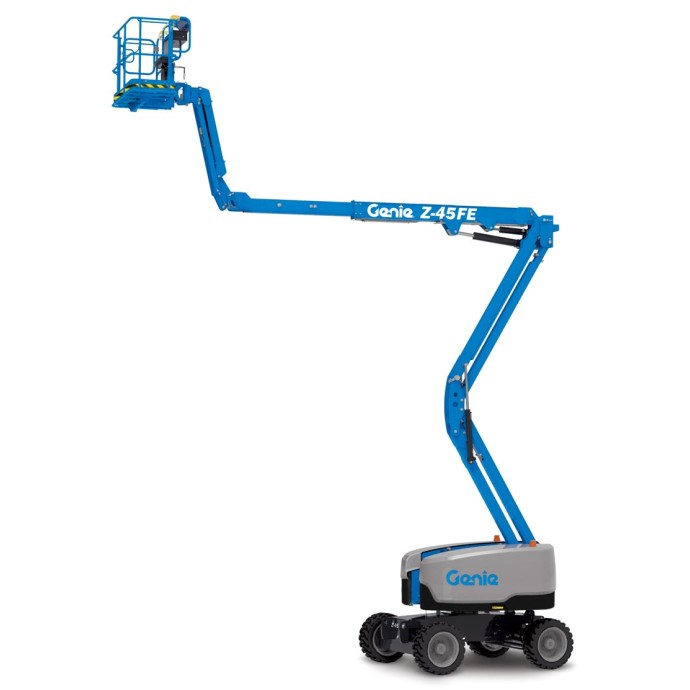

Two machines in one, the Genie® Z®-45 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full work day of emissions-free run time on a single battery charge. In ‘hybrid’ mode, it offers one week of run time with a single tank of diesel.
| Specification | Value |
|---|---|
| Max Working Height | 51 ft 8 in |
| Max Horizontal Reach | 22 ft 9 in |
| Max Up and Over Clearance (riser extended) | 24 ft 7 in |
| Platform Capacity | 660 lb |

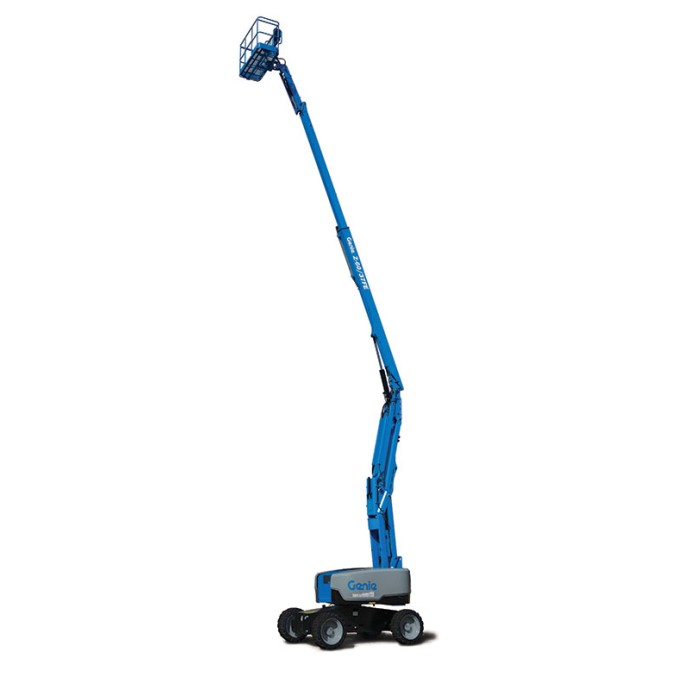

Two machines in one, the Genie® Z®-60 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full work day of emissions-free run time on a single battery charge. In ‘hybrid’ mode, it offers one week of run time with a single tank of diesel.
| Specification | Value |
|---|---|
| Max Working Height | 65 ft 7 in |
| Max Horizontal Reach | 36 ft 7 in |
| Max Up and Over Clearance (riser extended) | 24 ft 3 in |
| Platform Capacity | 500 lb |

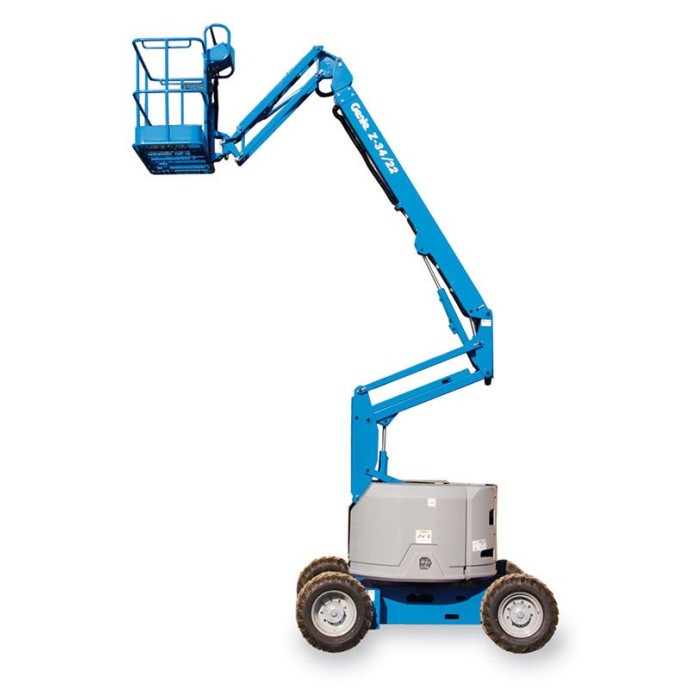

Ideal for outdoor construction and industrial applications, the engine-powered Genie® Z®-34/22 IC articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none.
| Specificatijon | Value |
|---|---|
| Max Working Height | 12.54 m |
| Max Horizontal Reach | 6.78 m |
| Max Up and Over Clearance (riser extended) | 4.60 m |
| Platform Capacity | 227 kg |

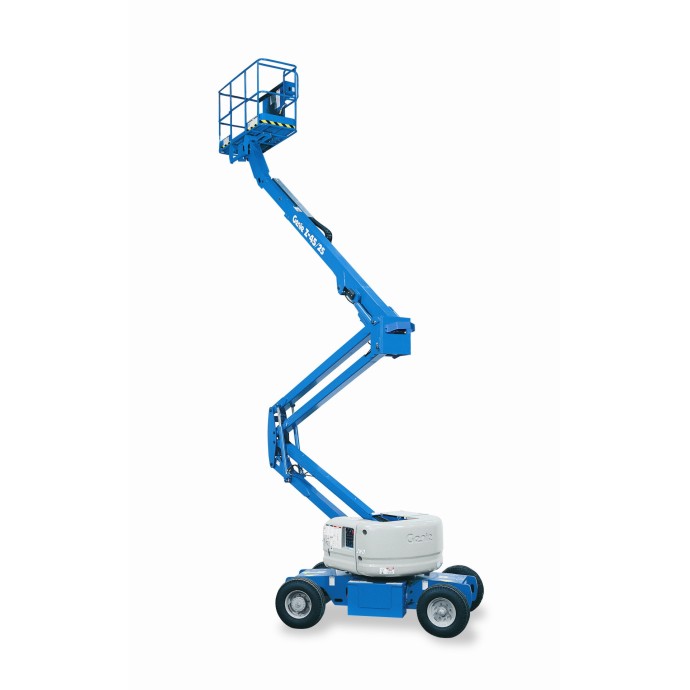

The Genie® Z®-45/25J DC electric articulating boom lift offer quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.
| Specificatijon | Value |
|---|---|
| Max Working Height | 15.94 m |
| Max Horizontal Reach | 7.65 m |
| Max Up and Over Clearance (riser extended) | 7.24 m |
| Platform Capacity | 227 kg |

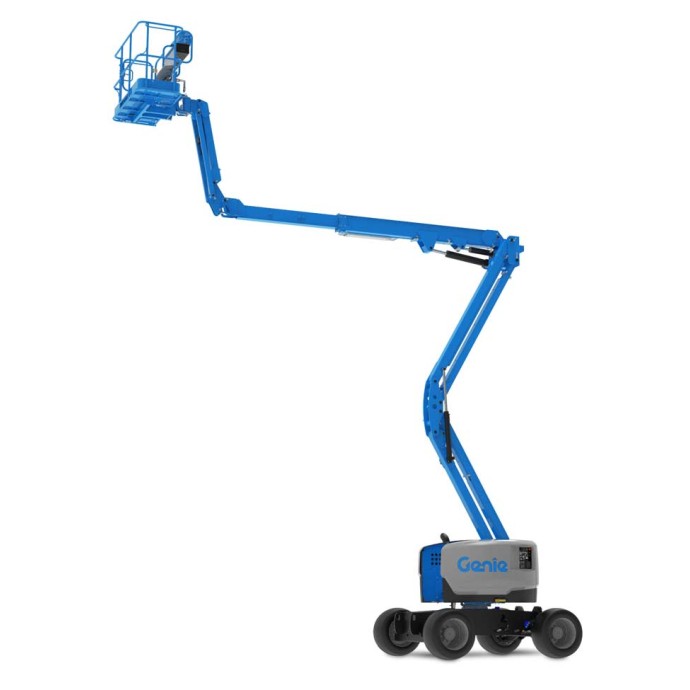

The Genie® Z®-45 HF high float telescopic booms are designed to perform heavy-lifting tasks in sensitive turf conditions, such as sand and turf ground conditions. Engineered to “float” on soft or delicate surfaces, the Genie Z-45 HF booms protect softer surfaces during operation that could be damaged by the more aggressive tread on regular rough terrain tires.
| Specificatijon | Value |
|---|---|
| Max Working Height | 15.86 m |
| Max Horizontal Reach | 7.55 m |
| Max Up and Over Clearance (riser extended) | 7.44 m |
| Platform Capacity | 272 kg |

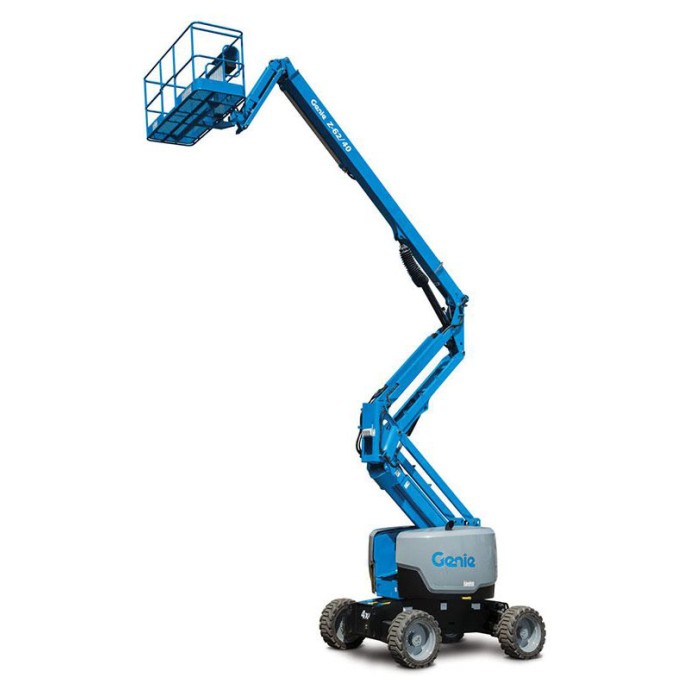

Ideal for outdoor construction and industrial applications, the Genie® Z®-62/40 articulating boom lift with capabilities provides lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none.
| Specification | Value |
|---|---|
| Max Working Height | 20.87 m |
| Max Horizontal Reach | 12.42 m |
| Max Up and Over Clearance (riser extended) | 7.8 m |
| Platform Capacity | 227 kg |

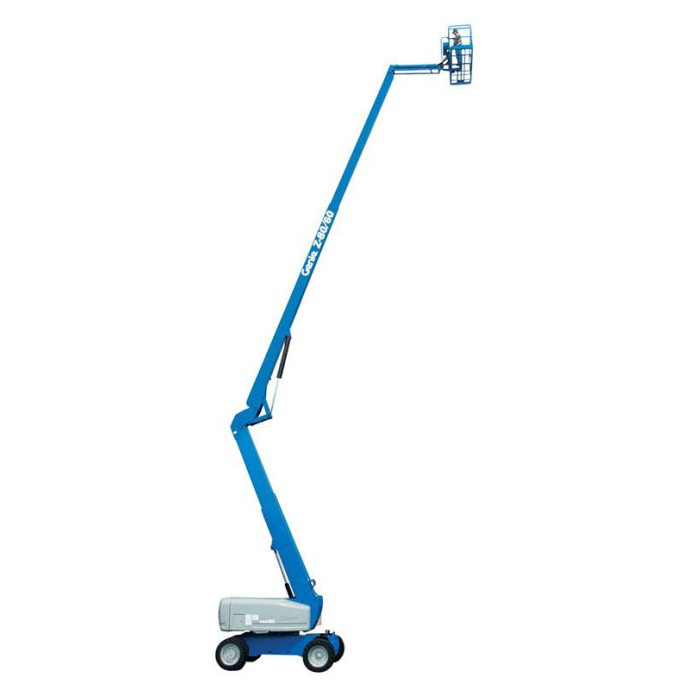

With outreach that’s second to none, the Genie® Z®-80/60 articulating boom lift delivers outstanding lifting versatility with up, out and over positioning capabilities — ideal for outdoor construction and industrial applications.
| Specification | Value |
|---|---|
| Max Working Height | 25.77 m |
| Max Horizontal Reach | 18.29 m |
| Max Up and Over Clearance (riser extended) | 8.83 m |
| Below Ground Reach | 4.83 m |
| Platform Capacity | 227 kg |

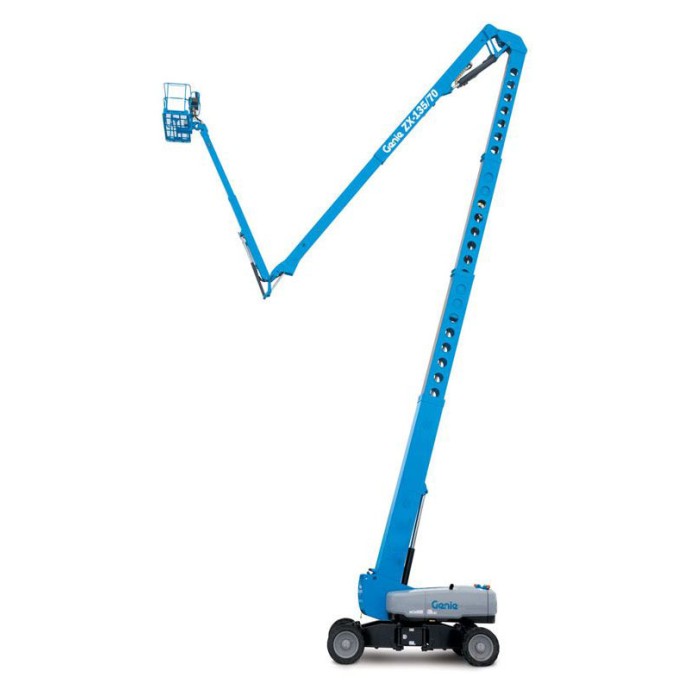

Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.
| Specification | Value |
|---|---|
| Max Working Height | 43.15 m |
| Max Horizontal Reach | 21.26 m |
| Max Up and Over Clearance (riser extended) | 23.01 m |
| Below Ground Reach | 5.87 m |
| Platform Capacity | 272 kg |
