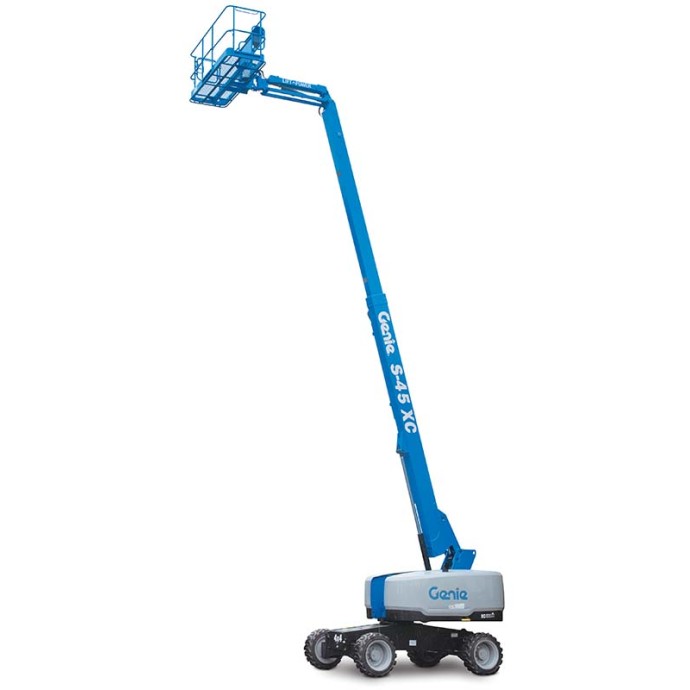

Able to perform a wider range of heavier lift tasks on construction and industrial jobsites with Genie® S®-40 XC™ and S-45 XC telescopic booms — offering a dual lift capacity of 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted and up to three people on board. These models are also available with a fixed, four-point track system that allows contractors to work any time of the year.
| Specification | Value |
|---|---|
| Max Working Height | S-40 XC: 14.04 m / S-45 XC: 15.56 m |
| Max Horizontal Reach | S-40 XC: 9.47 m / S-45 XC: 11.02 m |
| Below Ground Reach | S-40 XC: 0.30 m / S-45 XC: 1.27 m |
| Platform Capacity | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | S-40 XC: 2.49 m, 8.03 m / S-45 XC: 2.49 m, 9.47 m |
Genie® S®-65 XC™ and S-65 TraX™ telescopic boom lifts are the redesigned Xtra Capacity™ version of the popular Genie S-65 XC and S-65 TraX. They can perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to their dual lift capacity and offer innovative features to help increase jobsite efficiency.
| Specification | Value |
|---|---|
| Max Working Height | 21.81 m |
| Max Horizontal Reach | 16.51 m |
| Below Ground Reach | 2.65 m |
| Platform Capacity | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | 2.49 m, 9.76 m |

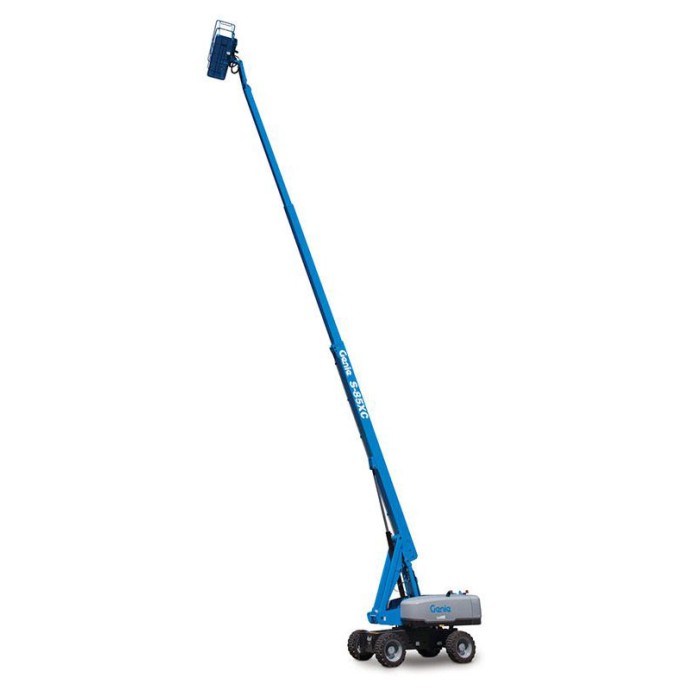

Genie® S®-85 XC telescopic boom offers a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted to perform a wider range of heavier lift tasks on construction and industrial job sites. And, the Genie Xtra Capacity™ (XC) feature lets up to three people work onboard while still leaving room for tools and job site materials.
| Specification | Value |
|---|---|
| Max Working Height | 27.91 m |
| Max Horizontal Reach | S-80 XC: 20.88 m / S-85 XC: 22.71 m |
| Below Ground Reach | 2.64 m |
| Platform Capacity | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | 2.49 m, 12.37 m |
The Genie® Z®-45 XC™ articulating boom is the redesigned Xtra Capacity™ version of the popular rough-terrain Genie Z-45/25 J RT diesel powered articulating boom. It’s the first Genie XC articulating boom model, boasting the benefits of a dual-envelope design to provide an unrestricted platform capacity of 660 lb (300 kg) and a restricted capacity of 1,000 lb (454 kg).
| Specification | Value |
|---|---|
| Max Working Height | 15.86 m |
| Max Horizontal Reach | 7.55 m |
| Max Up and Over Clearance (riser extended) | 7.44 m |
| Platform Capacity | 300 kg Unrestricted, 454 kg Restricted |

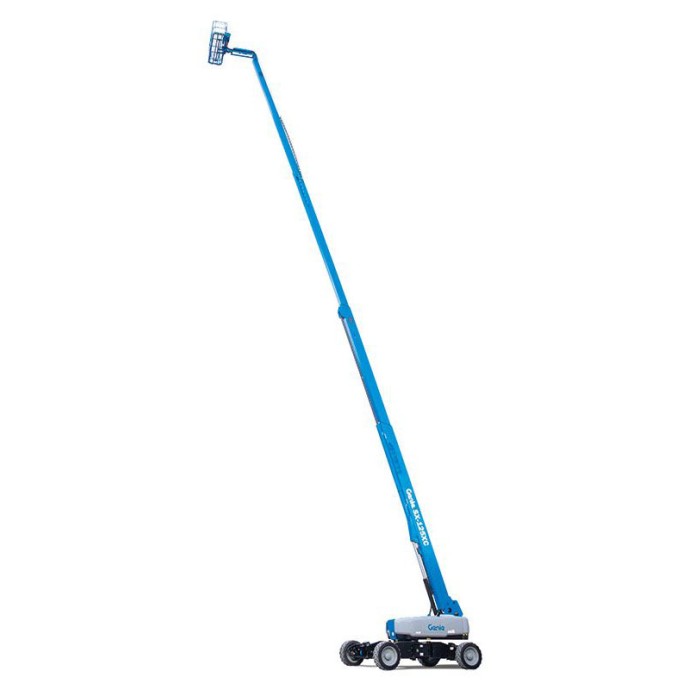

Perfect for heavy lifting in construction, bridge inspections and maintenance, stadium and sports arena, oil and gas, industrial, telecommunications and utility applications, the Genie® SX-125 XC™ telescopic boom works in more applications that require higher capacities thanks to its industry-leading dual lift capacity — 660-lb (300 kg)/1,000-lb (454 kg)**.
| Specification | Value |
|---|---|
| Max Working Height | 40.10 m |
| Max Horizontal Reach | 24.38 m |
| Below Ground Reach | 2.69 m |
| Platform Capacity | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | Width: 2.49 m - 3.94 m | Length: 14.25 m |

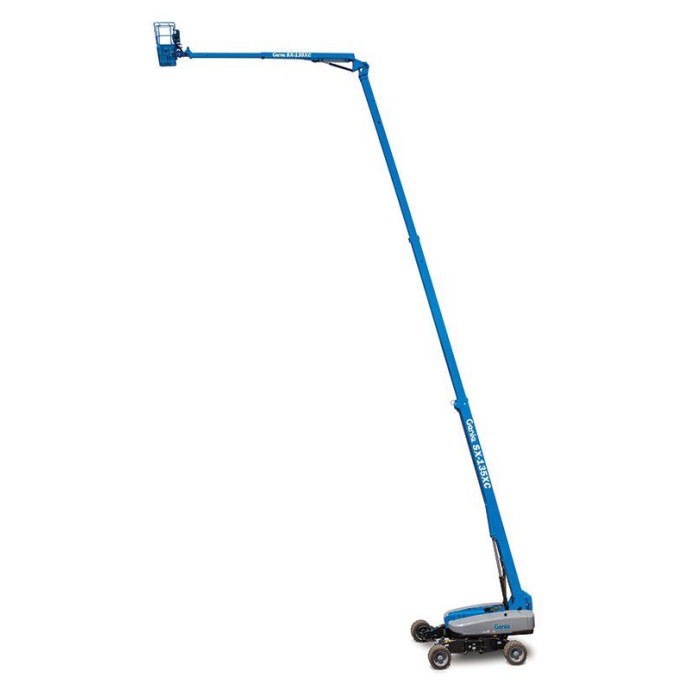

The Genie® SX-135 XC™ telescopic boom delivers industry-leading outreach and capacity through the full working envelope for incredible operational versatility and accessibility. It boasts 660 lb/1,000 lb (300/454 kg)** dual platform capacity with a smooth range of motion envelope to lift heavy loads in the most challenging jobsite applications.
| Specification | Value |
|---|---|
| Max Working Height | 43.15 m |
| Max Horizontal Reach | 27.43 m |
| Below Ground Reach | 6.00 m |
| Platform Capacity | 300 kg Unrestricted, 454 kg Restricted |
| Machine Width and Length | Width: 2.49 m - 3.94 m | Length: 19.76 m |
